At the 6G Symposium and 6G Summit, attendees saw the latest research that could lead to the next generation of wireless.
We’re still years away from 6G chips, components, and systems appearing at trade shows, but academic and industry research moves forward. Two conferences highlighted some of the latest work. These photos and videos highlight what EE World saw.
The 6G Symposium, which took place on October 18 and 19, 2023 in Washington, DC featured two exhibits from Keysight Technologies. The first shows a simulated Open RAN connected to a simulated 5G core network, both operating on a server. A simulated radio unit uses signal from a signal generator to simulate signals between the base station and user equipment. Software monitors the action and decodes the signals all the way from complex numbers and I/O diagrams up to protocol layer four.
A few steps away, Keysight assembled a demonstration of integrated sensing and communication, also called joint sensing and communication. In the demonstration, Keysight partnered with University of California San Diego, which developed 8×8 phased arrays to transmit and receive signals. The transmitter and receiver arrays were synchronized to get the channel’s impulse response. A machine-learning algorithm measures the received signals, having been trained using several objects at different distances. In this case, the object was a water bottle held in place by a hockey puck.
Also in Washington, The Center for Wireless Internet of Things at Northeastern University. Students have developed a physical layer for sub-THz communications with a bandwidth of 8 GHz using radio-frequency on chips (RFSoc) technology. Since 2022, the students have added equipment from Keysight that can sample at 68 Gs/sec. After scaling up their hardware, the team now has a system that can transmit and receive data at 16.4 Gb/sec with a maximum theoretical data rate of 100 Gb/sec.
Brooklyn 6G Summit
On November 1 and 2, EE World was in New York City at the Brooklyn 6G Summit hosted at the NYU Tandon School of Engineering. Here, we found several exhibits.
We’re hearing more and more talk about AI/ML in wireless. One such technology that could enable 6G is software-defined radio (SDR). That’s because data converters are fast enough to directly digitize RF signals. Pi-Radio, an NYU Wireless spinoff, exhibited its SDRs. The video shows an SRD board switching in microseconds between 6.5 GHz and 17 GHz with the goal of characterizing the RF channels for use with 6G. Incumbent users in FR3 include satellites, Thus we don’t know of we can extrapolate from the channel-sounding work done at FR1 frequencies.
When 5G is a research activity, companies and universities performed channel-sounding measurements, particularly for mmWave signals. Research at sub-THz and FR3 frequencies has gone on for several years. This time, however, researchers have AI/ML as a channel-sounding tool. In this video, Rohde & Schwarz and nVidia have teamed to use ML to teach a GPU how to find the optimum I/Q constellation for a given channel. The result: a constellation that defies the usual square shape. That new model goes into the receiver, which compensates for those differences. Think of it as error correction but in the RF domain.
Test-and-measurement companies are often amongst the earliest to work on developing new technologies. After all, how do you know if a new design works unless you can test it? As with 5G, 6G research started with the radio. That’s where you see RF test companies such as Keysight and Rohde & Schwarz. Now, work is moving deeper into the network. That’s why network-test-equipment company Viavi has entered the 6G game. In the video below, Ian Wong explains what the company is doing with 6G.

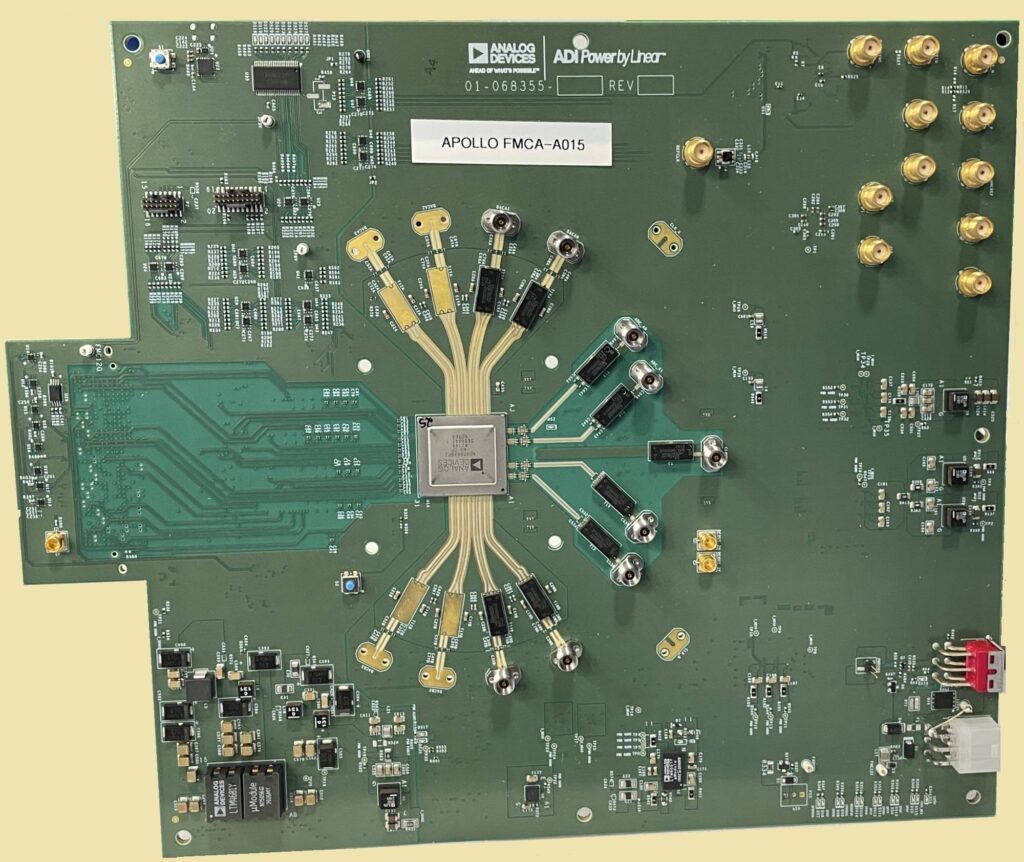

Not all the Brooklyn exhibits were centered on equipment. Analog Devices showed several RF components on boards. Below is a board containing the AD9084 Apollo MxFE, a quad 16-bit, 28 GS/sec RF DAC and a quad 12-bit, 20 GS/sec RF ADC.

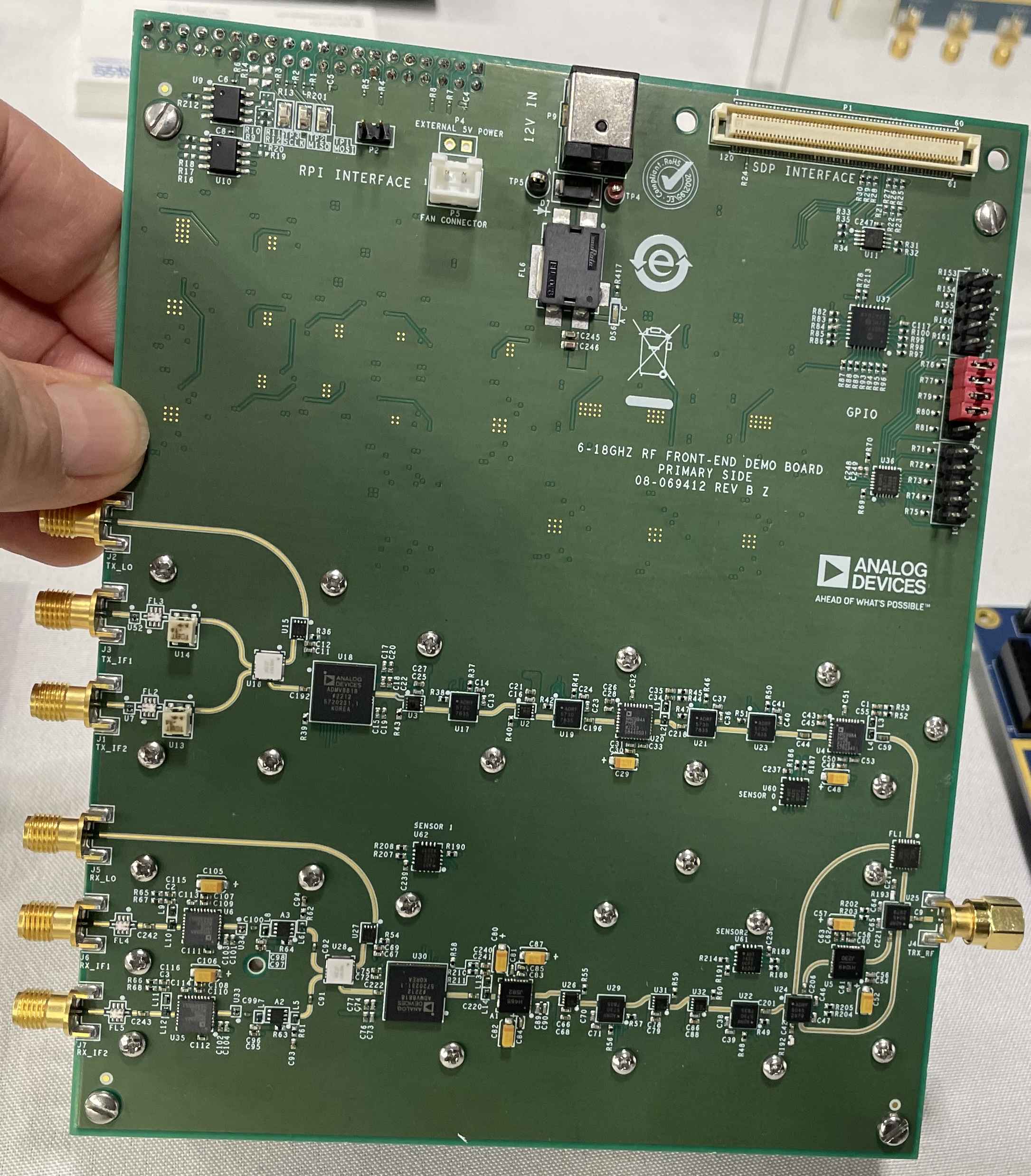

Here is a portion of an RF front-end board containing an ADMV8818 digitally tunable low-pass filter (2 GHz to 18 GHz), ADRF5730 digital attenuator (100 MHz to 40 GHz), HMC994APM5E GaAs pHEMT MMIC Power Amplifier (DC to 40 GHz).
As you enter the building, you can see why a 6G conference must happen here because it shows off the latest in communications technology.
